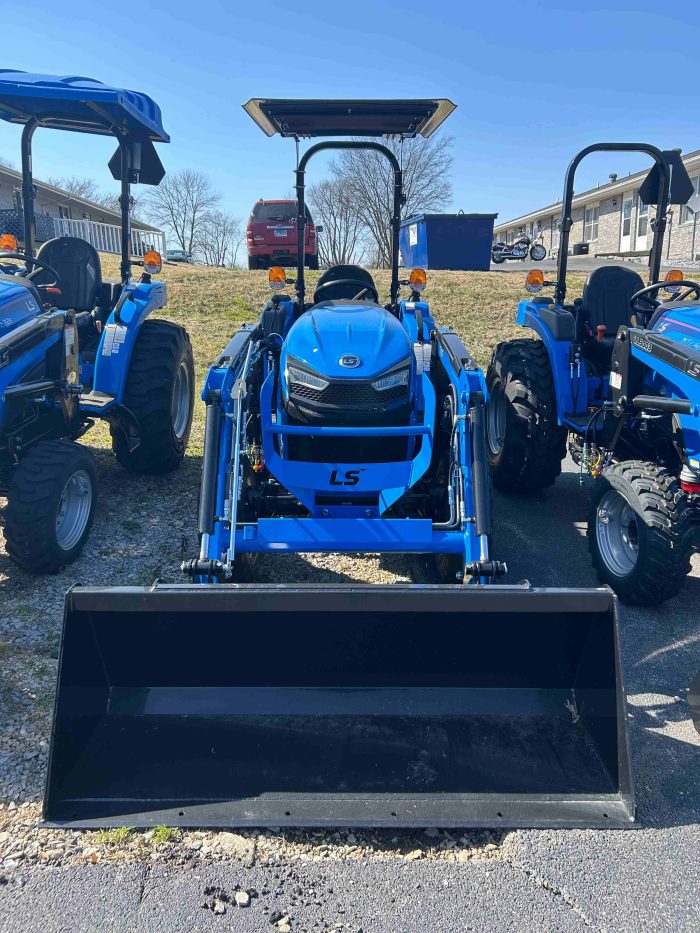

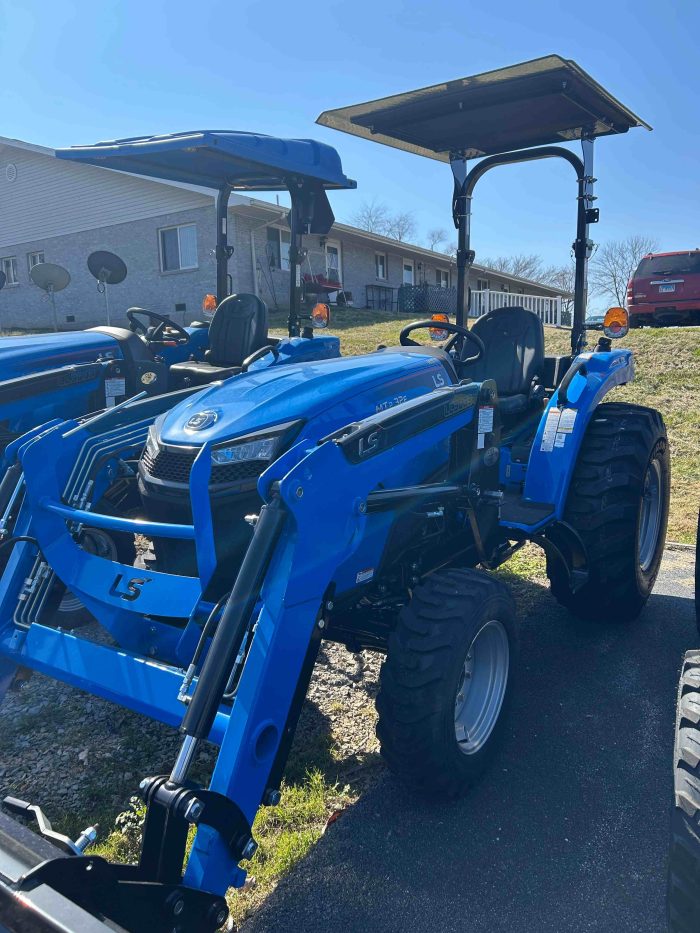

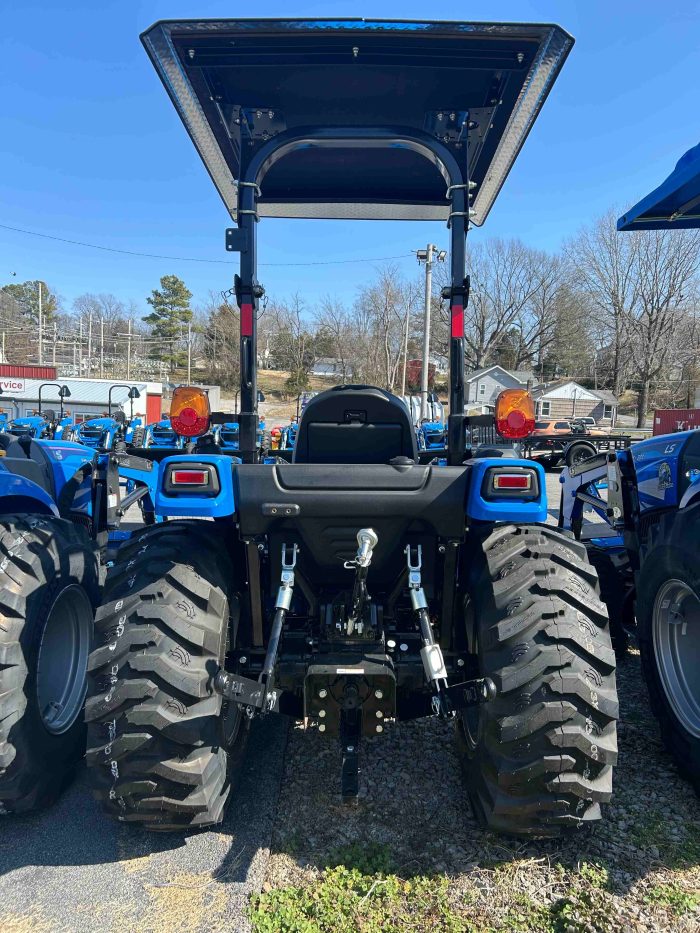

2024 LS MT232E-HT Tractor – Stock#0002992
618-658-1902
Advertised Price $27,520
Financing Options

The 2024 LS MT232E-HT Tractor is a compact, versatile utility tractor designed for a wide range of agricultural and landscaping tasks. Featuring a 32-horsepower engine, this model offers exceptional power and efficiency in a small, maneuverable design. Equipped with hydrostatic transmission for smooth operation and a comfortable operator experience, it comes with 4WD capabilities for enhanced traction on various terrains. The tractor is ideal for tasks like mowing, tilling, hauling, and snow removal, with a durable build and easy-to-use features that make it suitable for both residential and light commercial use.

MakeLS Tractor
ModelMT232E-HT
Year2024
MilesNew
EngineYanmar 3 Cylinder, Liquid-cooled, Diesel, NA, IDI - 31.7 HP

Tab

Specifications

Specifications

Engine

Type: 3 Cylinder, Liquid-cooled, Diesel, NA, IDI

Model: YANMAR

Engine HP: 31.7

PTO HP: 28.5

Rated Speed (RPM): 2,600

Displacement (CU. IN): 100.2

Fuel Tank Capacity (gal): 10.6

Alternator (V-A): 12V – 55 Amps

Drive Train

Transmission Type: Synchro Shuttle

No. of Speed: F12 X R12

Brakes: Wet, Multi-disc

Steering: Hydrostatic Power Steering

PTO

Type: Independent

Rear, RPM: 540 (Standard)

Hydraulic System

Control System: Position

Implement Pump (GPM): 7.4

Steering Pump (GPM): 5

Total Flow (GPM): 12.4

Category, 3 PT Hitch: CAT I

Hitch Lift Capacity, LBS (Hitch End):  1,808

Remote Valves: Option

Dimension

Overall Length (Frame to Link, IN.): 125

Overall Width with Tires (IN.): 66

Wheelbase (IN.): 69

Height to Top (In.):  95

Tire Size

AG Front/Rear: 7 – 14 / 11.2 – 24

IND Front/Rear: 27X8.50-15 / 43X16.00-20

VT Front Rear:  27X8.50-15 / 43X16.00-20

Turf Front/Rear: 25X8.50-14 / 41X14.00-20

Weight

Total Weight without Ballast (lbs.): 3,166

Tab

Key Features

  • Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility

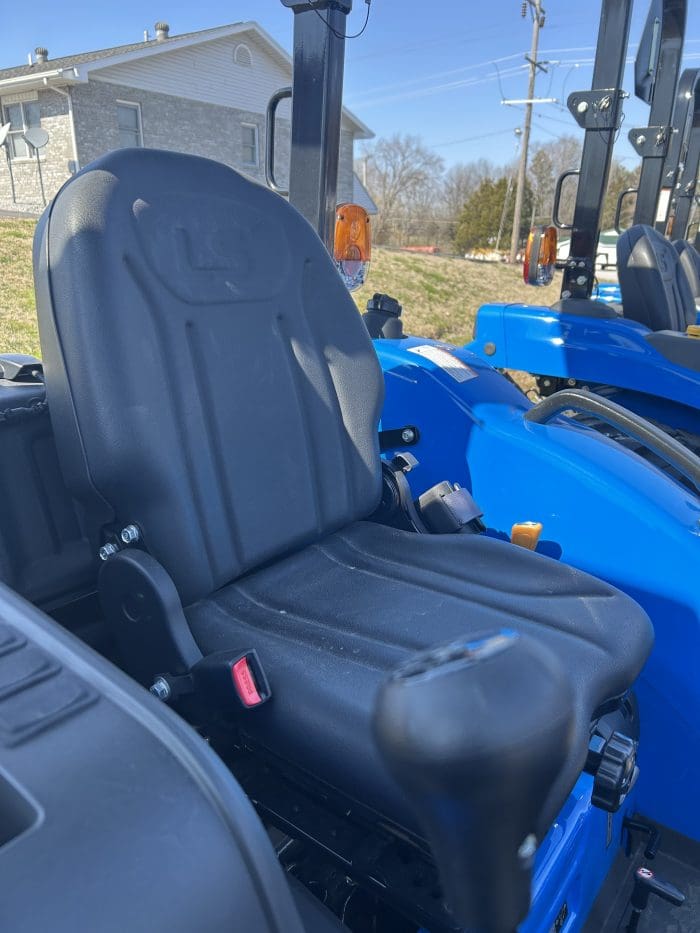

  • Much improved seat comfortability
  • Cruise control
  • Factory A/C cab available in a 25HP tractor
  • New hood design (LS Family look), Grill open space plus 20%
  • LED head Lamp
  • 1 Inch large tire size and four different tire options
  • Larger lifting capacity, loader lifting capacity -> New MT226E (LL3301/2) 1,965 lbs. New MT2E & MT2(LL3303) 2,506 lbs.
  • Workability, 4-point mount structure as well -> digging depth of 97.2” and bucket digging force of 3,663 lbs.
  • TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
  • E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift (option).

Options

Loader Information

  • Bucket (in.): 66
  • Maximum Lift height (in.): 94.3
  • Clearance with Attachment Dump (in.): 67
  • Reach at Maximum Height (in.): 14.4
  • Maximum Dump Angle (deg.): 48
  • Maximum Rollback Angle (deg.): 42.5
  • Digging Depth (in.): 4.8
  • Overall Height in Carry Position (in.): 51.2
  • Lift Capacity (Bucket Pivot Pin, MAX, Height) (lbs): 2,063
  • Lift Capacity (Pivot pin @ 1.5m) (lbs.): 2,506
  • Breakout Force(@ Pivot pin) (lbs.): 3,723
  • Approx. Weight (Loader w/o Bucket) (lbs.): 741
