FRONT END LOADERS

THE BEST ATTACHMENT FOR THE JOB.

These quick-attach, skid-steer compatible front-end loaders have a higher lift capacity than the competition. And come standard with body-shielding grill guards.

FRONT END LOADERS

LL1101

  • Maximum Lift Height (@ Pivot Pin) (in.): 72
  • Clearance with Attachment Dump (in.): 50
  • Reach at Maximum Height (in.): 26.5
  • Maximum Rollback Angle (deg.): 45
  • Maximum Rollback Angle (deg.): 28
  • Digging Depth (in.): 4.7
  • Overall Height in Carry Position (in.): 41.5
  • Lift Capacity (@ Pivot Pin) (lbs.): 1,005
  • Approx. Weight (Loader w/o Bucket) (lbs.): 300

COMPATIBLE WITH

MT122, MT125

Front End Loaders Lifestyle
*Exact model shown may vary

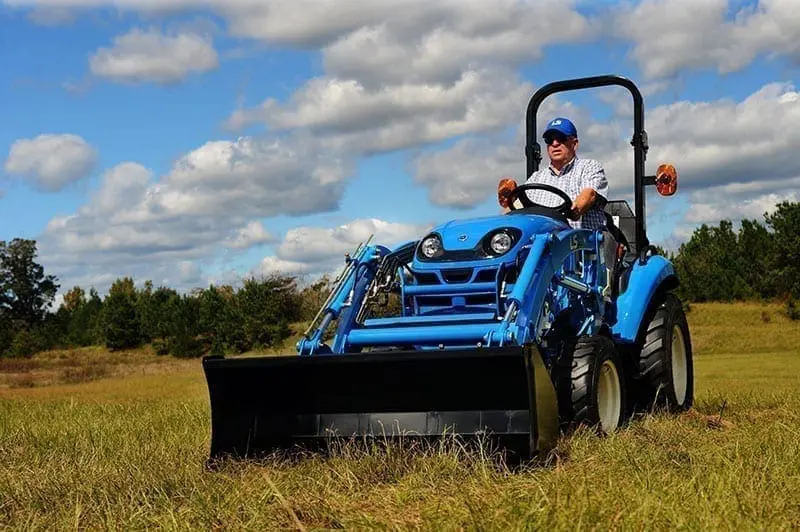

Front End Loader Lifestyle 3
*Exact model shown may vary

FRONT END LOADERS

LL2102

  • Maximum Lift Height (in): 85.7
  • Clearance with Attachment Dump(in): 65
  • Reach at Maximum Height (in): 22
  • Maximum Dump Angle (deg.): 52
  • Maximum Rollback Angle (deg.): 43
  • Digging Depth (in): 4.4
  • Overall Height in Carry Position (in): 42.8
  • Lift Capacity (@ Pivot Pin) (lbs): 1,270
  • Breakout Force (@ Pivot pin) (lbs): 1,640
  • Approx. Weight (Loader w/o Bucket) (lbs): 638

COMPATIBLE WITH

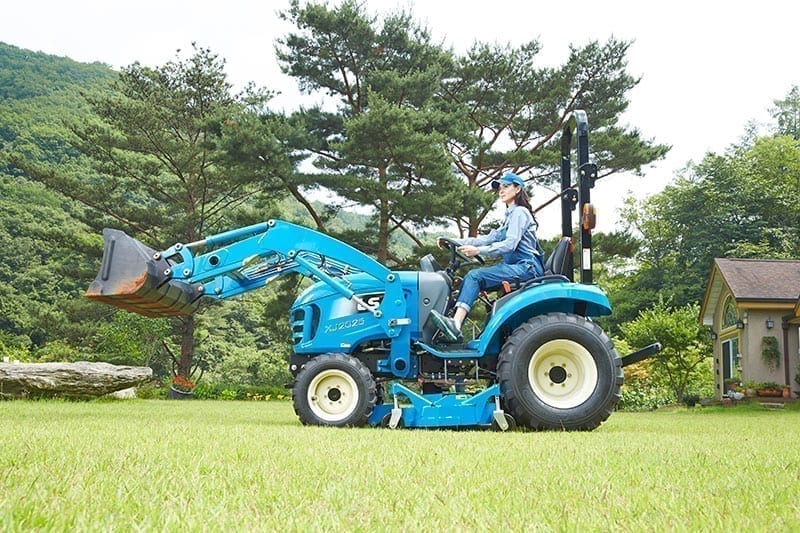

XJ2025

FRONT END LOADERS

LL3001, LL3002

  • Bucket (in.): 66
  • Maximum Lift height (in.): 94.3
  • Clearance with Attachment Dump (in.): 67
  • Reach at Maximum Height (in.): 14.4
  • Maximum Dump Angle (deg.): 48
  • Maximum Rollback Angle (deg.): 42.5
  • Digging Depth (in.): 4.8
  • Overall Height in Carry Position (in.): 51.2
  • Lift Capacity (Bucket Pivot Pin, MAX, Height) (lbs): 1,599
  • Lift Capacity (Pivot pin @ 1.5m) (lbs.): 1,965
  • Breakout Force(@ Pivot pin) (lbs.): 2,962
  • Approx. Weight (Loader w/o Bucket) (lbs.): 741

COMPATIBLE WITH

MT226ED, MT226E, MT226HE

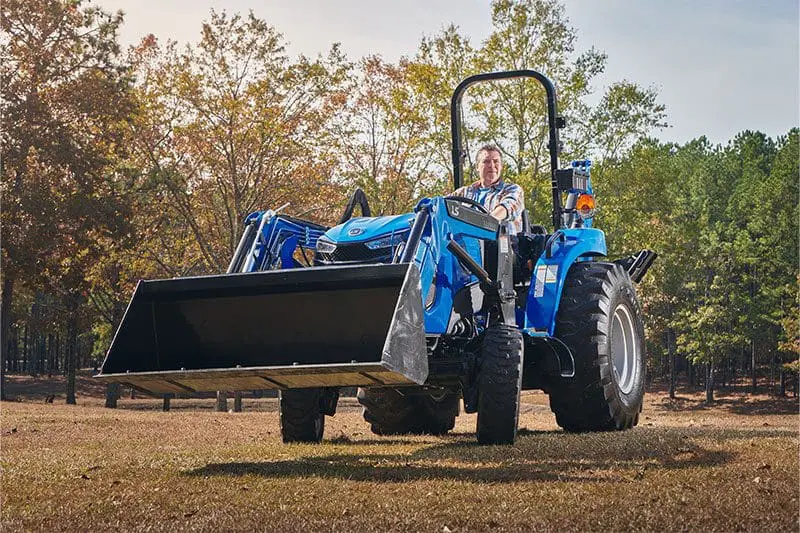

FRONT END LOADERS LL3001, LL3002

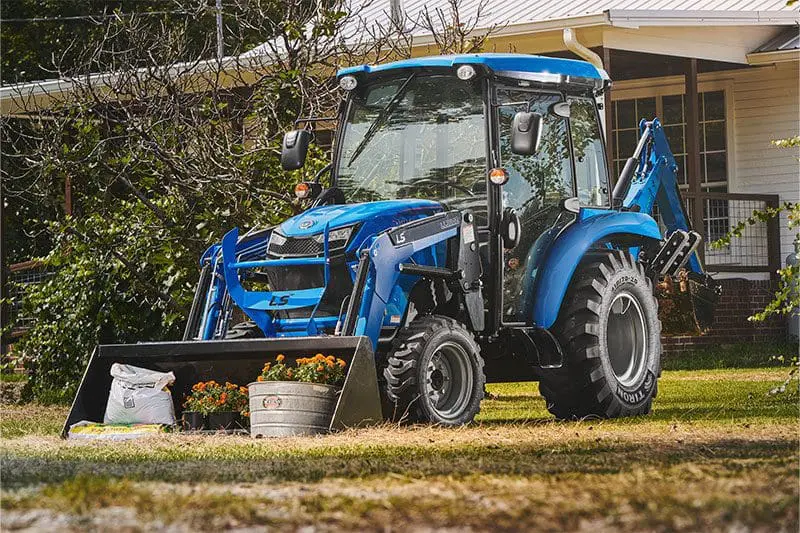

FRONT END LOADERS LL3003

FRONT END LOADERS

LL3003

  • Bucket (in.): 66
  • Maximum Lift height (in.): 94.3
  • Clearance with Attachment Dump (in.): 67
  • Reach at Maximum Height (in.): 14.4
  • Maximum Dump Angle (deg.): 48
  • Maximum Rollback Angle (deg.): 42.5
  • Digging Depth (in.): 4.8
  • Overall Height in Carry Position (in.): 51.2
  • Lift Capacity (Bucket Pivot Pin, MAX, Height) (lbs): 2,063
  • Lift Capacity (Pivot pin @ 1.5m) (lbs.): 2,506
  • Breakout Force(@ Pivot pin) (lbs.): 3,723
  • Approx. Weight (Loader w/o Bucket) (lbs.): 741

COMPATIBLE WITH

MT232E, MT232HEC, MT232HC, MT232HE, MT232H, MT242HEC, MT242HE, MT242HC, MT242E, MT242H

FRONT END LOADERS

LL3110

  • Maximum Lift height (in): 90.7
  • Clearance with Attachment Dump (in): 79.5
  • Reach at Maximum Height (in): 20.4
  • Maximum Dump Angle (deg.): 48
  • Maximum Rollback Angle (deg.): 38
  • Digging Depth (in.) 6.7
  • Overall Height in Carry Position (in): 48.5
  • Lift Capacity(@ Pivot pin) (lbs.): 2,182
  • Breakout Force(@ Pivot pin) (lbs.): 3,420
  • Approx. Weight (Loader w/o Bucket) (lbs.): 1,056

COMPATIBLE WITH

MT335H, MT335HC

Front End Loader Lifestyle 6
*Exact model shown may vary

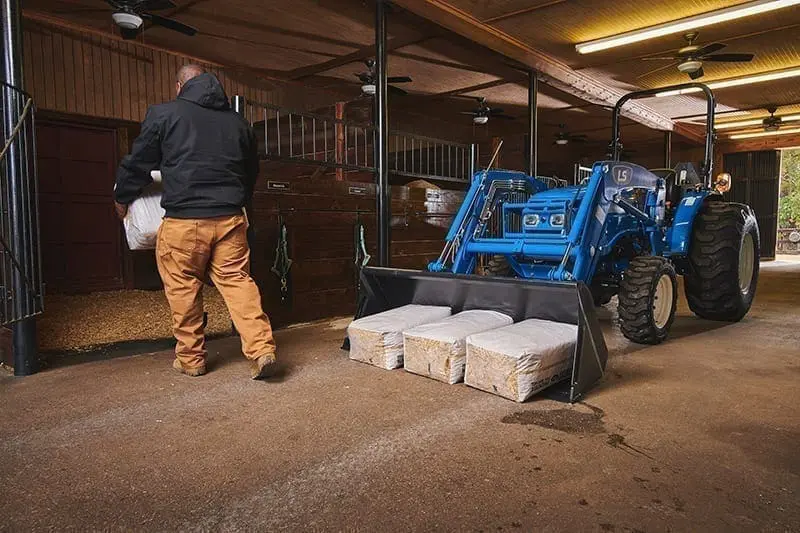

Front End Loader Lifestyle 1
*Exact model shown may vary

FRONT END LOADERS

LL3300

  • Bucket (in): 66
  • Maximum Lift height (in): 92
  • Clearance with Attachment Dump (in): 63.2
  • Reach at Maximum Height (in):15.7
  • Maximum Dump Angle (deg): 58
  • Maximum Rollback Angle (deg): 40
  • Digging Depth (in): 7.6
  • Overall Height in Carry Position (in): 50.6
  • Lift Capacity (@ Pivot pin) (lbs): 1,608
  • Breakout Force (@ Pivot pin) (lbs): 2,701
  • Approx. Weight (Loader w/o Bucket) (lbs): 648

COMPATIBLE WITH

MT225E, MT225HE

FRONT END LOADERS

LL4105

  • Bucket Size (in): 72
  • Maximum Lift height (in): 96.3
  • Clearance with Attachment Dump (in): 63.2
  • Reach at Maximum Height (in):17.6
  • Maximum Dump Angle (deg.) 48
  • Maximum Rollback Angle (deg.): 38
  • Digging Depth (in): 4.4
  • Overall Height in Carry Position (in): 49.2
  • Lift Capacity(@ Pivot pin) (lbs.) 2,187
  • Breakout Force(@ Pivot pin) (lbs.): 3,450

COMPATIBLE WITH

MT345E, MT345HE , MT355HE, MT355E

Front End Loader Lifestyle 2
*Exact model shown may vary
Front End Loader Lifestyle 4
*Exact model shown may vary

FRONT END LOADERS

LL6100

  • Tractor Application: MT5 Series
  • Bucker Size (in): 78
  • Maximum Lift height (in): 126.5
  • Clearance with Attachment Dump (in): 95.3
  • Reach at Maximum Height (in): 5.7
  • Maximum Dump Angle (deg.) 64
  • Maximum Rollback Angle (deg.): 38
  • Digging Depth (in): 7.0
  • Overall Height in Carry Position (in): 64.2
  • Lift Capacity(@ Pivot pin) (lbs.) 3,626
  • Breakout Force(@ Pivot pin) (lbs.): 6,644
  • Approx. Weight(Loader w/o Bucket)(lbs.): 1,232

COMPATIBLE WITH

MT573C, MT573CPS

FRONT END LOADERS

LL8100

  • Bucket Size (in.): 83
  • Maximum Lift Height (in.): 139.9
  • Clearance with Attachment Dump (in.): 103.3
  • Reach at Maximum Height (in.): 23.4
  • Maximum Dump Angle (deg.): 57
  • Maximum Rollback Angle (deg.): 46
  • Digging Depth (in.): 4.6
  • Overall Height in Carry Position (in.): 68.8
  • Lift Capacity (@ Pivot Pin) (lbs.): 5,139
  • Breakout Force (@ Pivot pin) (lbs.): 5,313
  • Approx. Weight (Loader w/o Bucket) (lbs.): 1,660

COMPATIBLE WITH

MT7 Series

Front End Loader Lifestyle 5
*Exact model shown may vary
