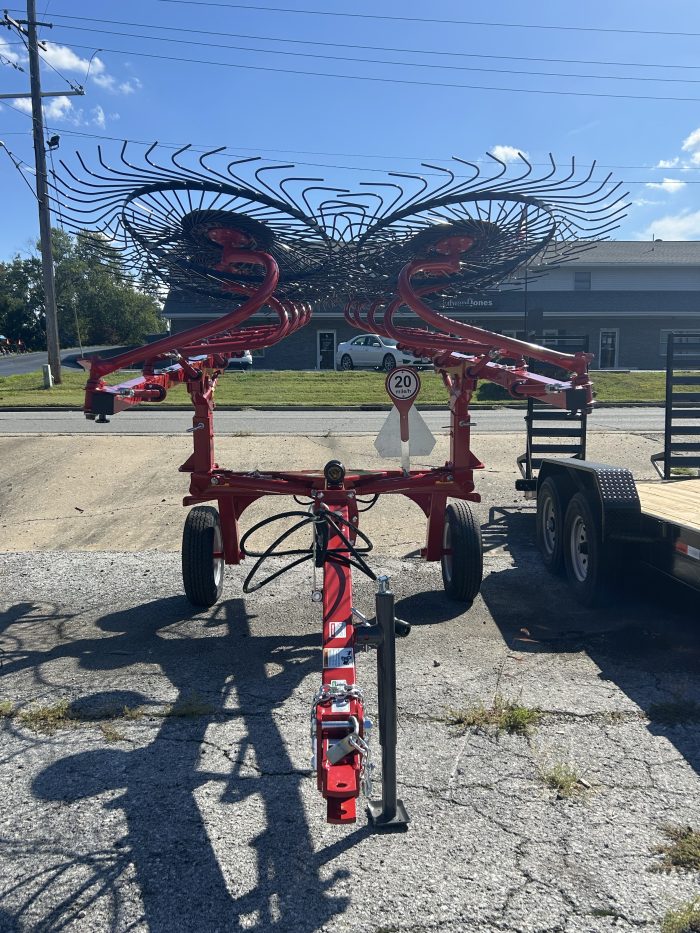

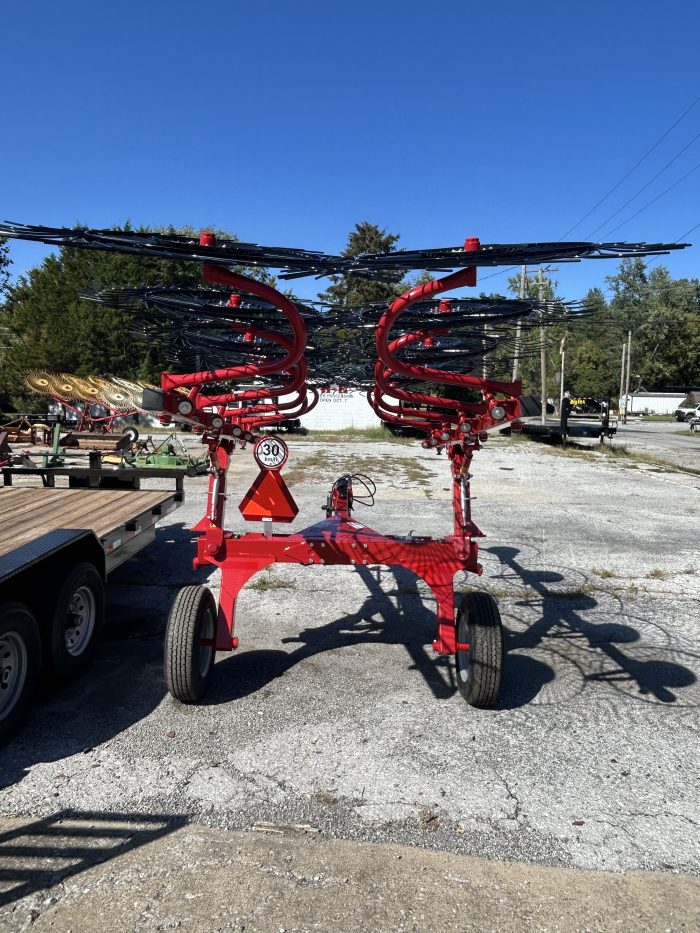

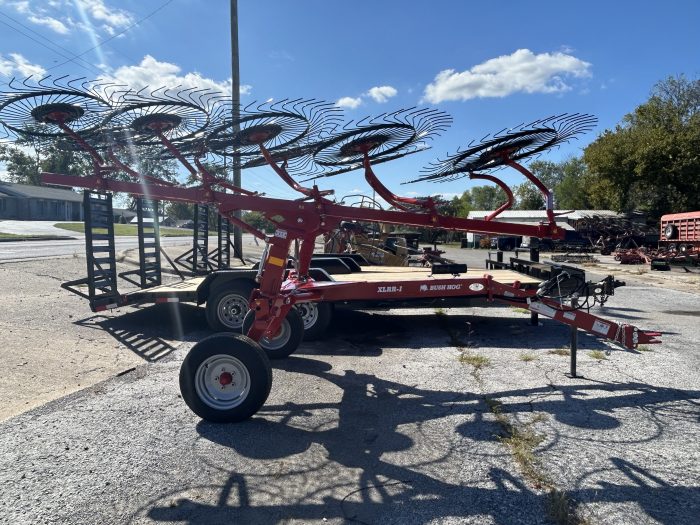

The 2025 Bush Hog XLRR1022 is a robust, 10‑wheel pull‑type V‑rake designed for medium to large hay operations. It features independently suspended 55‑inch finger wheels, high‑clearance frame for heavy crop loads, and hydraulic folding wings for transport. With a working width of about 19 ft to 21 ft 7 in and a transport width of 8 ft 5 in, it provides efficient windrow formation. Weighing roughly 1,875 lb and requiring a minimum of 30 PTO hp, it is built for dependable, flexible hay raking across varied terrain.

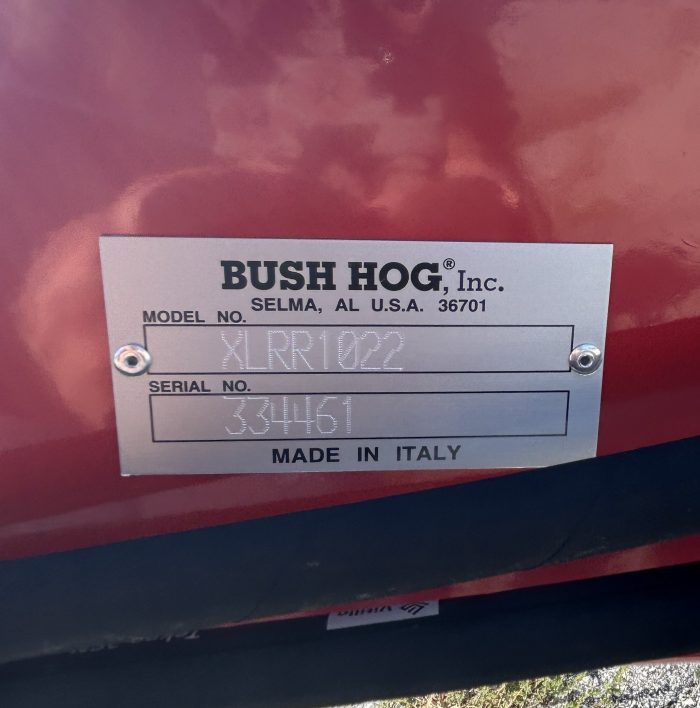

- Model: Bush Hog XLRR1022-1
- Number of Wheels: 10
- Wheel Diameter: 55″
- Tine Diameter: 7 mm
- Raking Width: 22′
- Minimum Transport Height: 7′ 9″
- Transport Width: 8′ 5″
- Maximum Windrow Width: 6′ 7″
- Minimum Windrow Width: 3′
- Minimum Working Width: 19′
- Maximum Working Width: 21′ 7″
- Tires: 205-75/15
- Weight: 1,875 lbs
- Minimum Horsepower Required: 30 HP
