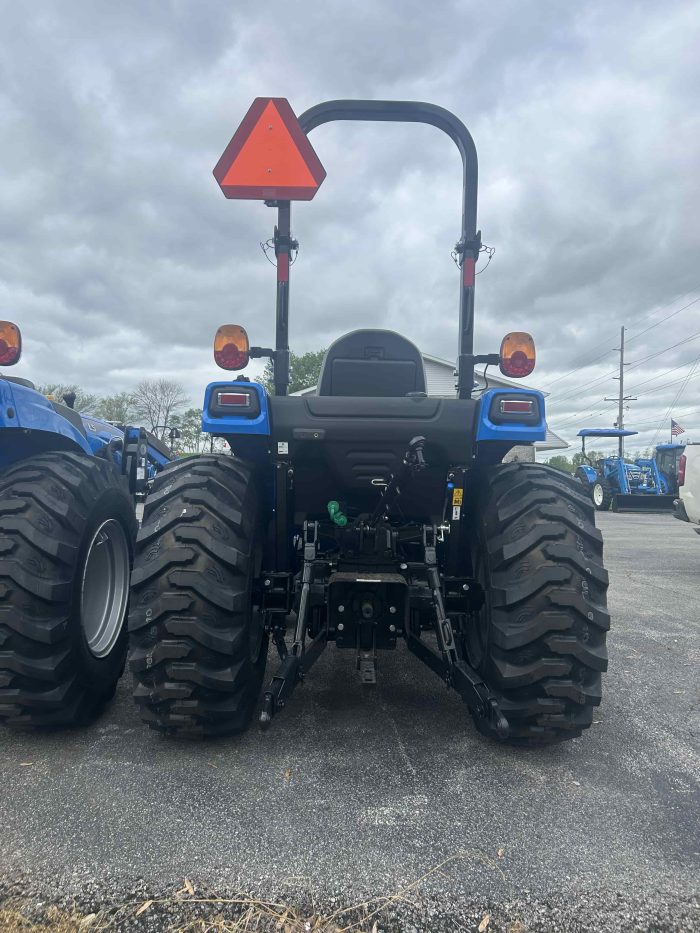

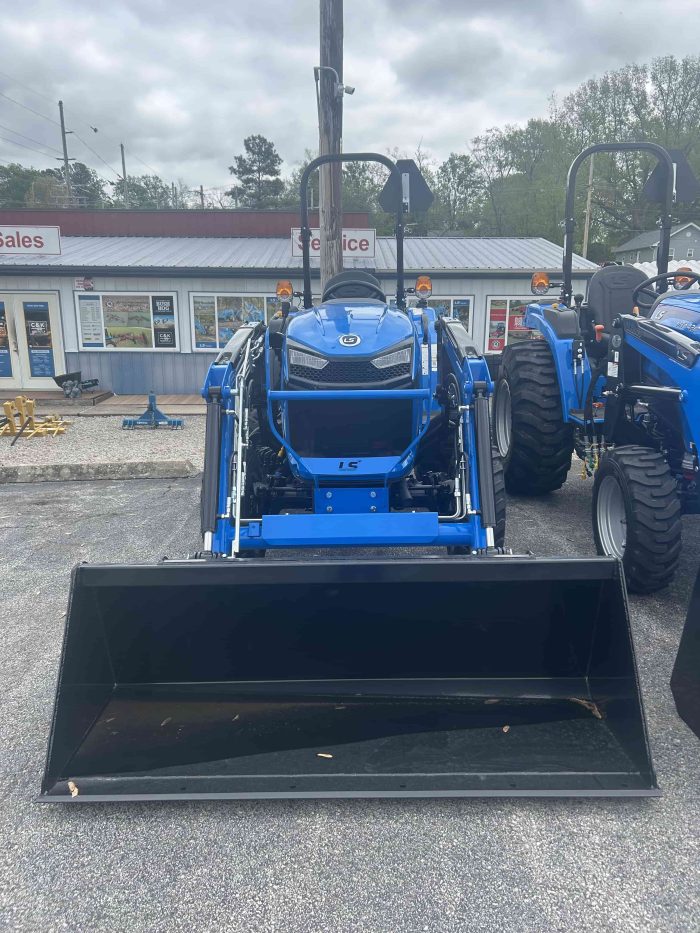

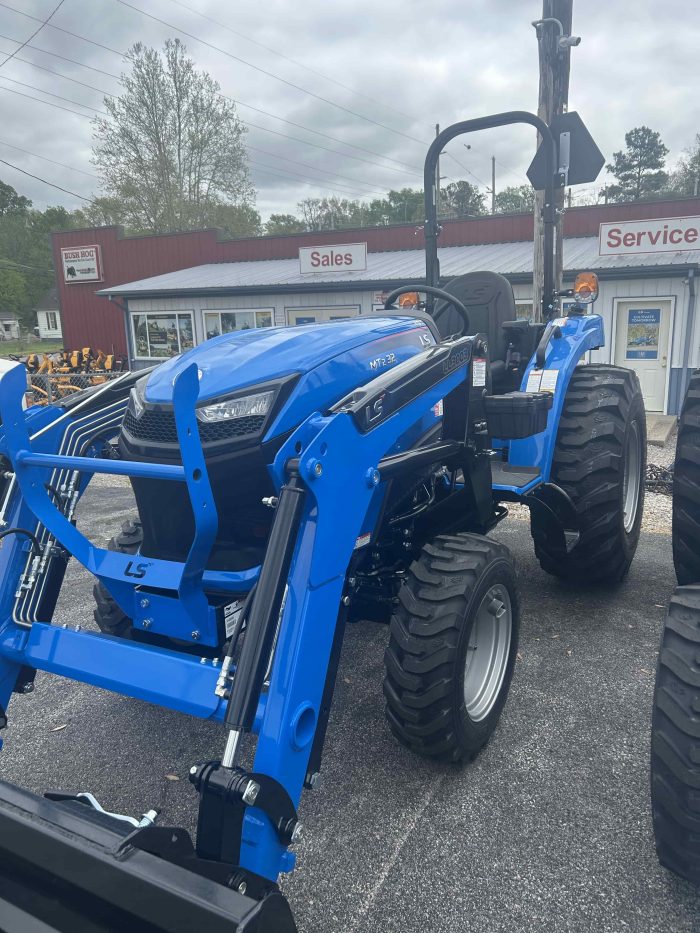

2025 LS MT232H Tractor – Stock#0003052
618-658-1902
Advertised Price $30,383
Financing Options

The 2025 LS MT232H Tractor is a powerful and efficient compact tractor designed for a variety of agricultural and landscaping tasks. Equipped with a robust engine, hydrostatic transmission, and a comfortable operator station, the MT232H offers smooth performance and easy maneuverability. Its high lifting capacity, durable construction, and versatile features make it ideal for both commercial and residential use, providing reliable performance for small to medium-sized farms.

MakeLS Tractor
ModelMT232H
Year2025
MilesNew
Engine3 Cylinder Liquid-cooled Diesel, NA, CRDII

Tab

Specifications

Specifications

Engine

Type 3 Cylinder Liquid-cooled Diesel, NA, CRDII
Model (Tier 4) YANMAR
Engine HP (Gross) 31.7
PTO HP 26.2
Rated Speed (RPM) 2,600
Displacement (cu. in) 100.2
Fuel Tank Capacity (gal) 10.6
Alternator (V-A) 12V – 50 Amps

Drive Train

Transmission Type HST
No. of Speed 3 Ranges
Brakes Wet, Multi-disc
Steering Hydrostatic Power Steering

PTO

Type Independent
Rear, rpm 540 (Standard)

Hydraulic System

Control System Position
Implement pump (gpm) 6.7
Steering pump (gpm) 5.0
Total flow (gpm) 11.7
Category, 3 pt hitch CAT I
Hitch Lift capacity, lbs (Hitch end) 1,808
Remote Valves 1 Pair

Dimension

Overall length (Frame to Link, in.) 125
Overall width with tires (in.) 66
Wheelbase (in.) 69
Height to top (in.) 95

Tire Size

Ag Front / Rear 7 – 14 / 11.2 – 24
IND Front / Rear 27X8.50-15 / 43X16.00-20
VT Front / Rear 27X8.50-15 / 43X16.00-20
Turf Front / Rear 25X8.50-14 / 41X14.00-20

Weight

Total weight without ballast (lbs.) 3,254

Key Features

  • Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility

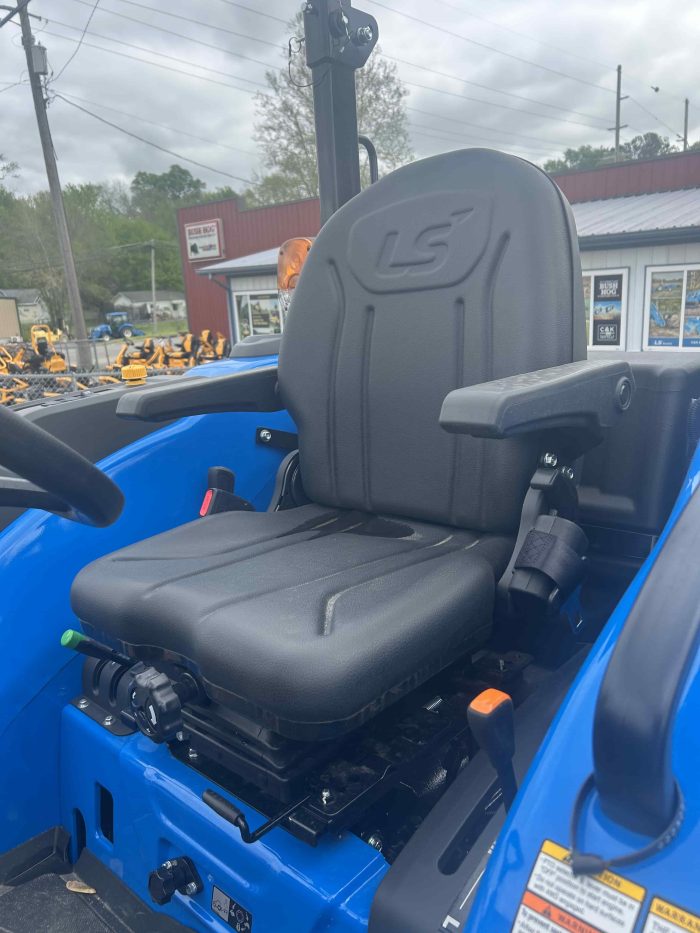

  • Much improved seat comfortability
  • Cruise control & linked pedal functionalities (Engine RPM matches user input demand on F/R HST pedals)
  • New hood design (LS Family look), Grill open space plus 20%
  • LED head Lamp
  • 1 Inch large tire size and four different tire options
  • Larger lifting capacity, loader lifting capacity of New MT226E (LL3301/2) 1,965 lbs. New MT2E & MT2 (LL3303) 2,506lbs.
  • Workability, 4-point mount structure as well as digging depth of 97.2” and bucket digging force of 3,663lbs.

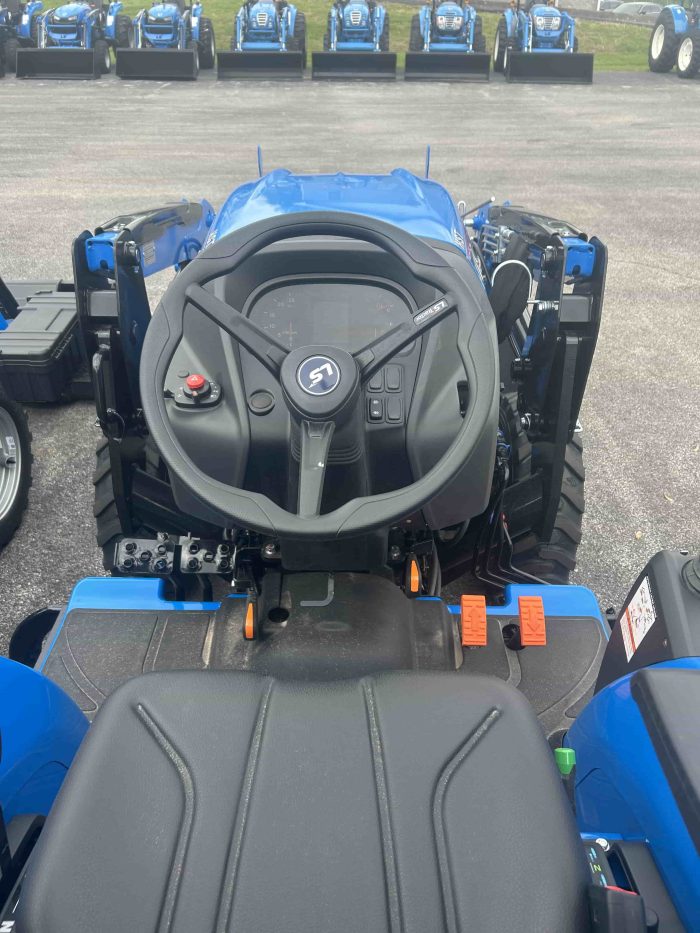

  • TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
  • E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift.
