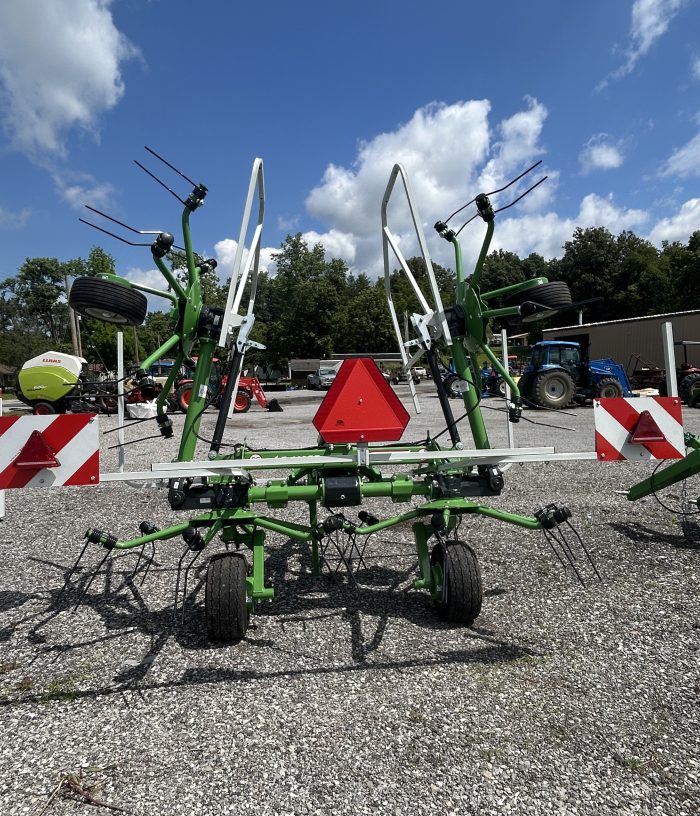

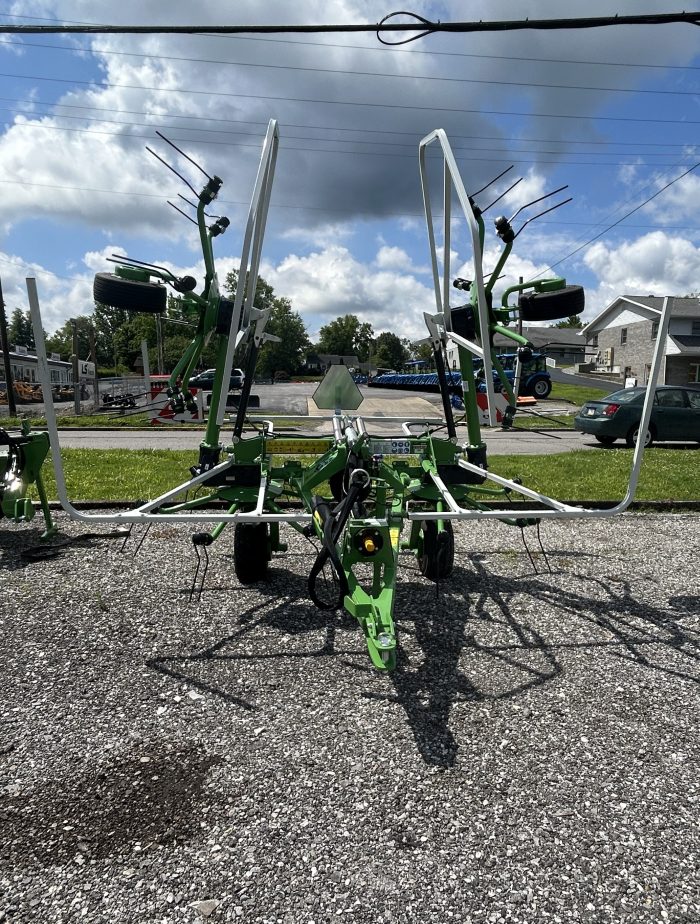

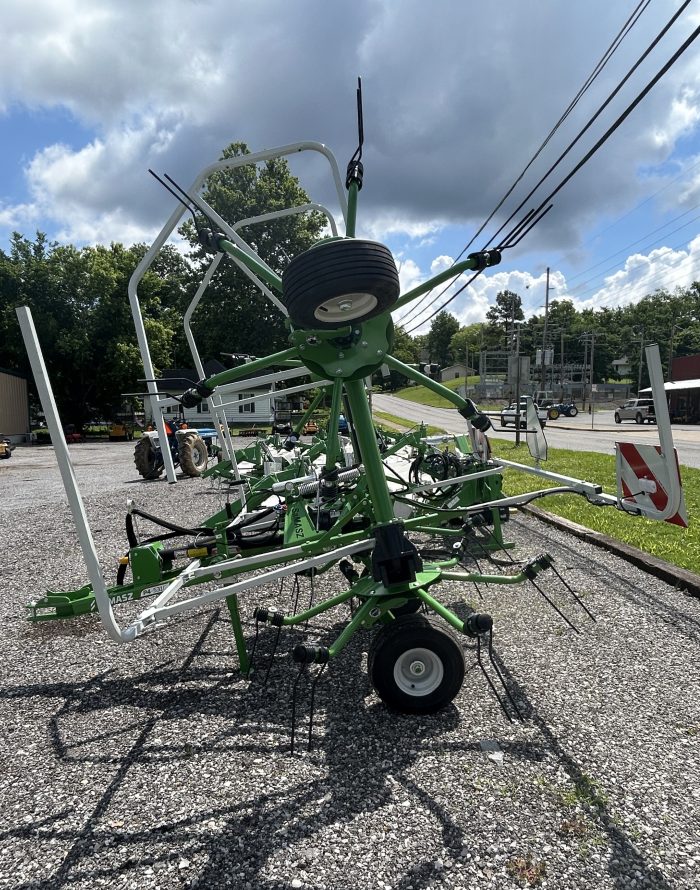

A trailed, four-rotor rotary tedder designed for efficient hay spreading in medium to large-scale operations. With a working width of 5.30 meters (17’5″) and a working capacity of approximately 6.3 hectares per hour (15.5 acres per hour), it is suitable for tractors with a minimum of 40 horsepower.
Technical Specification
Working Width: 5,30 / 17’5″
Transport Width: 3,00 / 9’8″
Transport Height: 2,70 / 8’1″
Number of Rotors: 4
Necessary Hydraulic Couplers: 1 x single acting
Working Capacity: 6,30 / 15, 55
The Number of Rotor Arms: 6
Diameter of the Rotor: 172 / 5’8″
RPM: 540
3-Point Hitch Cat. : II
Power Demand: from 40
Weight:680/ 1500
PTO Shaft: tractor – tedder: w/ friction clutch
