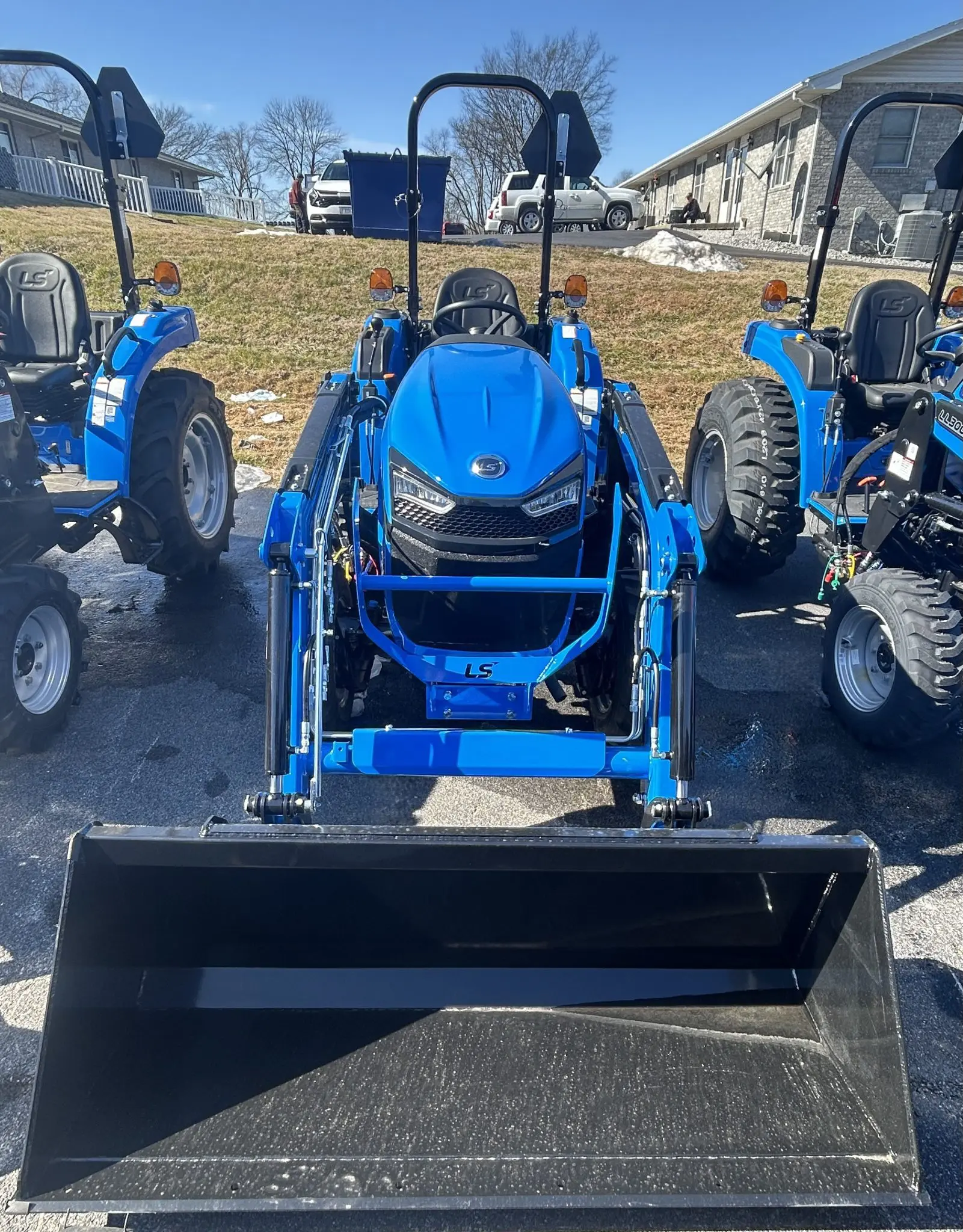

LS MT226E-GR Specifications
Engine
| Type | 3 Cylinder, Liquid-cooled, Diesel, NA, IDI |
| Model (Tier 4) | MHI |
| Engine HP (Gross) | 24.6 |
| PTO HP | 19.2 |
| Rated Speed (RPM) | 2,500 |
| Displacement (cu. in) | 80.4 |
| Fuel Tank Capacity (gal) | 10.6 |
| Alternator (V-A) | 12V – 50 Amps |
Drive Train
| Transmission Type | Synchro Shuttle |
| No. of Speed | F12 X R12 |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
| Rear, rpm | 540 (Standard) |
Hydraulic System
| Control System | Position |
| Implement pump (gpm) | 7.9 |
| Steering pump (gpm) | 4.6 |
| Total flow (gpm) | 12.5 |
| Category, 3 pt hitch | CAT I |
| Hitch Lift capacity, lbs (Hitch end) | 1,808 |
| Remote Valves | Option |
Dimension
| Overall length (Frame to Link, in.) | 119 |
| Overall width with tires (in.) | 66 |
| Wheelbase (in.) | 66 |
| Height to top (in.) | 95 |
Tire Size
| Ag Front / Rear | 7 – 14 / 11.2 – 24 |
| IND Front / Rear | 27X8.50-15 / 43X16.00-20 |
| VT Front / Rear | 27X8.50-15 / 43X16.00-20 |
| Turf Front / Rear | 25X8.50-14 / 41X14.00-20 |
Weight
| Total weight without ballast (lbs.) | 2,985 |
