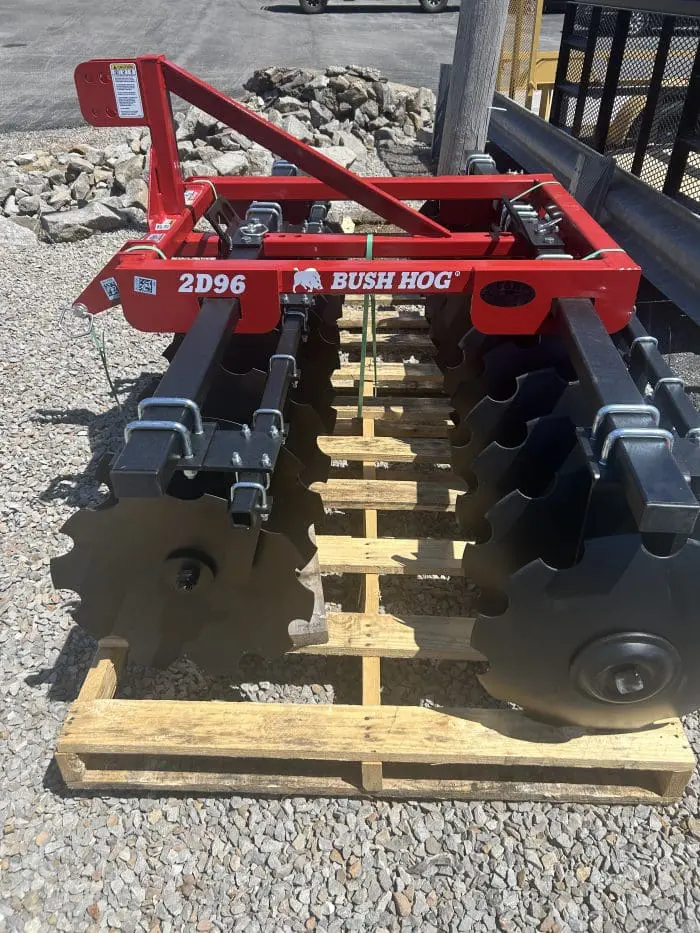

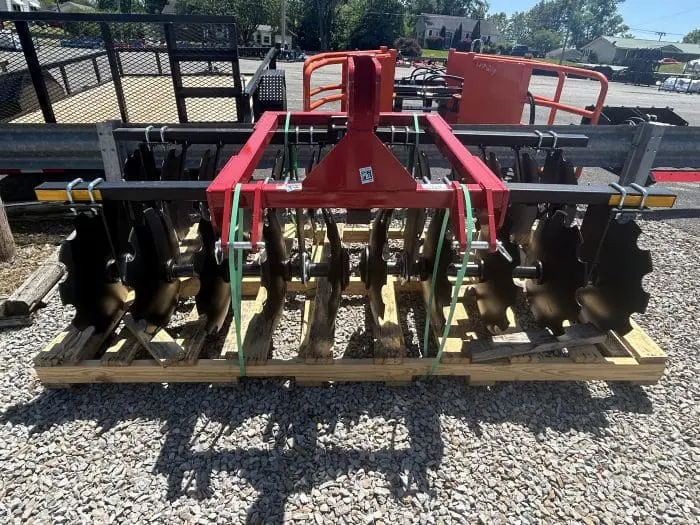

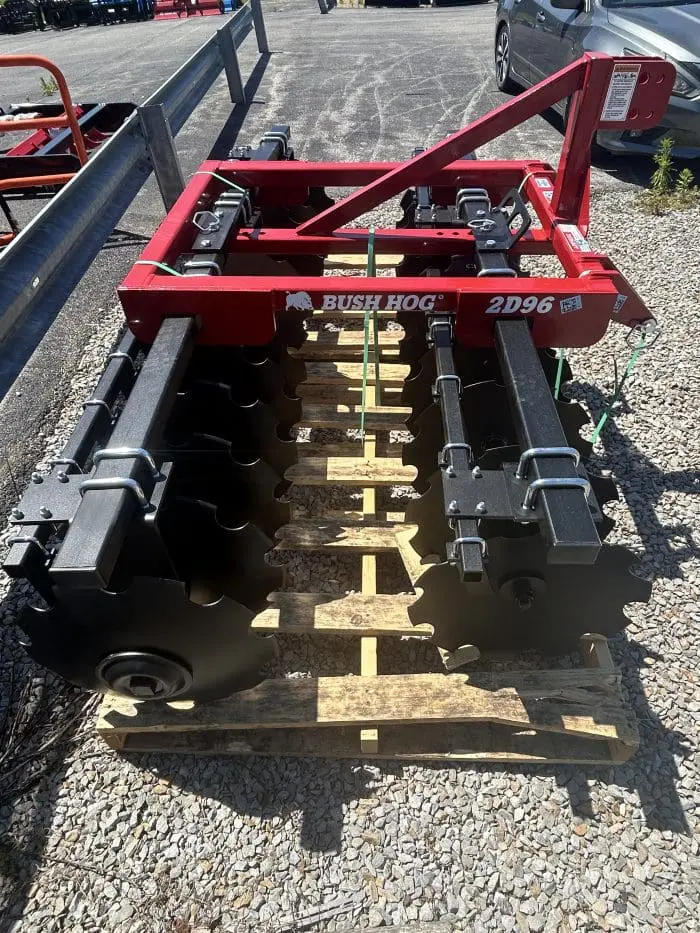

Bush Hog 2D96
- Model: 2D96
- Drawback HP Requirement: 65 HP
- Hitch Type: Cat. 1 Std and QH
- Max Cultivation Width: 96 in.
- Approximate WT Load on Each Blade: 39-41 lbs.
- Disc Blade Side Notched: 18 in. or 20 in.
- Disc Blade Spacing: 9 in. Front, 7 1/2 in. Rear or 9 in. Front/Rear or 7 1/2 in. Front/Rear
- Disc Blade Bearing: Self-aligning, sealed ball bearings
- # of Blades: 2 per gang
- Forward Gang Angle Adjustment: Front Gangs – 0°, 7°, 14°, 21°
- Rear Gang Angle Adjustment: Rear Gangs – 7°, 14°, 21°
- Mainframe Fornt Tube Construction: 2 in. square tubing
- Gang Arm Construction: 3 in. x 1 1/2 in. tubing
- Gang Axle: 1 in. square, high carbon steel
