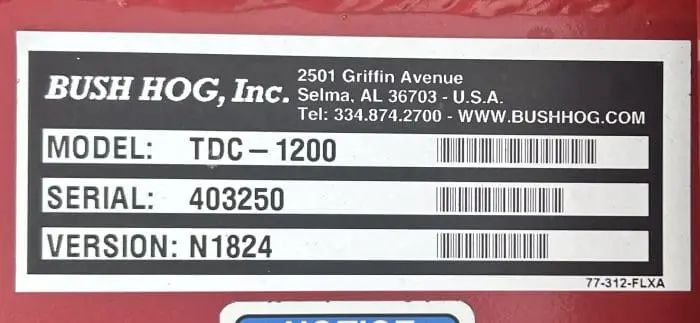

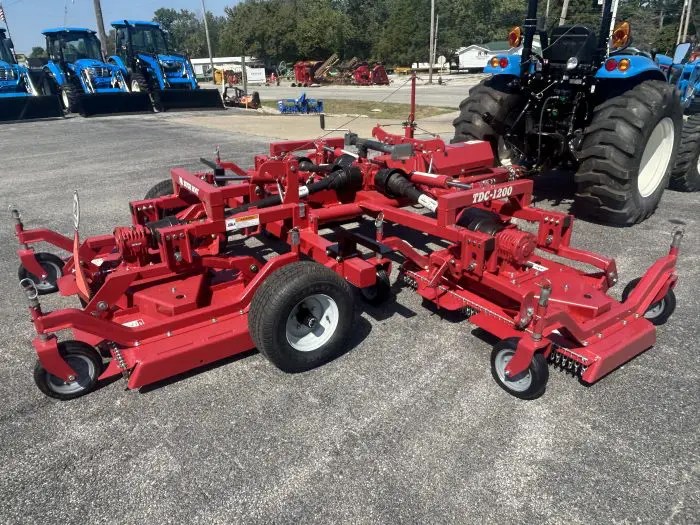

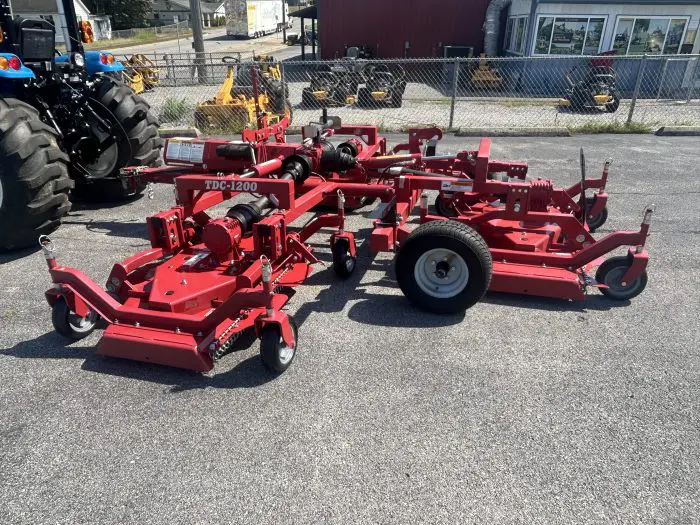

Bush Hog TDC1200
- Cutting Width: 12′
- Cutting Height (1/4″ Increments): 1″ – 5″
- Tractor HP Range: 25 – 80 PTO
- Tractor PTO Speed: 540
- Hitch Type: Cat. 1 & 2, Drawbar
- Front Hitch: Adjustable 6 Position
- Number of Blades Per Deck (Total): 3 (9)
- Blade Tip Speed: 15,747 FPM
- Center Deck Cutting Width (ft.): 5′
- Wing Deck Cutting Width (ft.): 4′
- Deck Overlap Adjustment (in.): 6″
- Degree of Cutting Attitude (Flex): 30⁰ Up / 15⁰ Down
- Deck Thickness: 8-Gauge Steel Plate
- Splitter Gearbox HP: 80 HP
- Mower Deck Gearbox HP: 50 HP
- Deck Lift Cylinders (in.): 2.5″ x 10″ Single Acting
- Main Driveline: Cat. 6 Constant Velocity with Slip Clutch
- Hydraulics: 3 – Single Action
- Transport Width (ft.): 7.6′
- Transport Length (ft.): 11.9′
- Transport Height (ft.): 6.2′
- Overall Width (ft.): 12.2′
- Max. Overall Length (ft.): 12.7′
- Deflector Type: Rear Safety Chains Std.
- Transport Tires (2): 20.5 x 8 – 10 Highway Rated
- Total Weight (lb.): 2,742 lbs
