2026 Bush Hog XLRR1022 10 Wheel Hay Rake – Stock#0003697
618-658-1902
Advertised Price $9,702
Financing Options

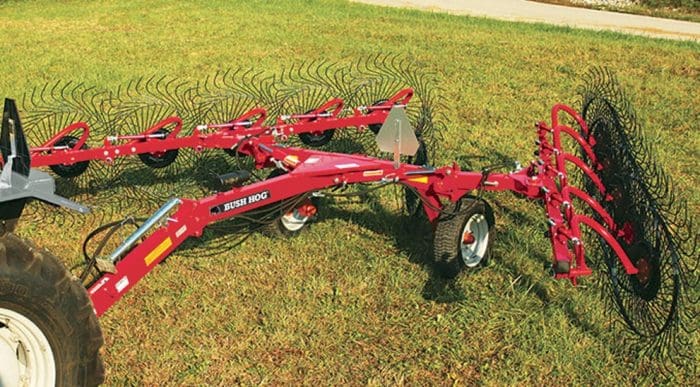

A pull-type V-rake designed for efficient hay and forage windrowing. It features 10 independently suspended finger wheels, a high-clearance frame for heavy crop conditions, and an adjustable working width up to about 22 feet for fast field coverage. Built for durability and smooth operation, it folds for narrow transport and delivers reliable raking performance with tractors as small as 30 HP.

MakeBush Hog
ModelXLRR1022
Year2026
MilesNew

Specifications

Bush Hog XLRR1022

  • Model: XLRR1022-1
  • Number of Finger Wheels: 10
  • Finger Wheel Diameter: 55″
  • Tine Diameter: 7mm
  • Minimum Transport Height: 7″ 9′
  • Transport Width: 8″ 5′
  • Minimum Windrow Width: 3″
  • Maximum Windrow Width: 6″ 7′
  • Minimum Working Width: 16″ 4′ 19 ” 21 ” 8
  • Maximum Working Width: 18″ 8′ 21 ” 7 ‘ 25 ” 7 ‘
  • Tires: 205-75/15
  • Weight: 1,875 pounds
  • Minimum HP Required: 30

Features

Construction Features

  • The XLRR-I V-Rakes feature independent wheel suspension on each wheel for unmatched performance when operating in rough or rolling terrain
  • Each independently suspended wheel operates separately from the adjacent wheel, allowing maximum pickup of cut material even in unlevel ground
  • High ground clearance of the main frame allows operators to process large windrows in heavy crop conditions
  • The leading wheels on the 10-wheel and 12-wheel versions can be raised and locked out when there is a need to reduce the windrow volume in heavy crop conditions
  • The XLRR-I Rake sections fold horizontally over the mainframe for a narrow transport width and good stability
