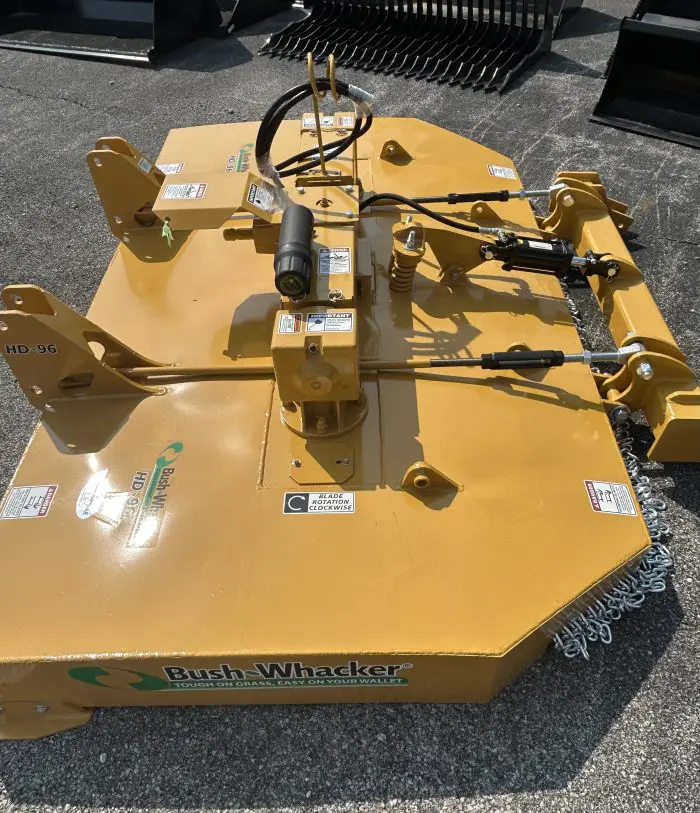

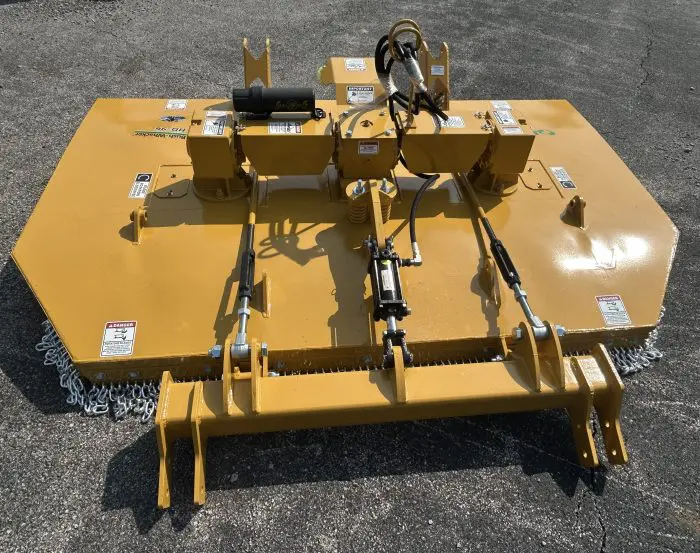

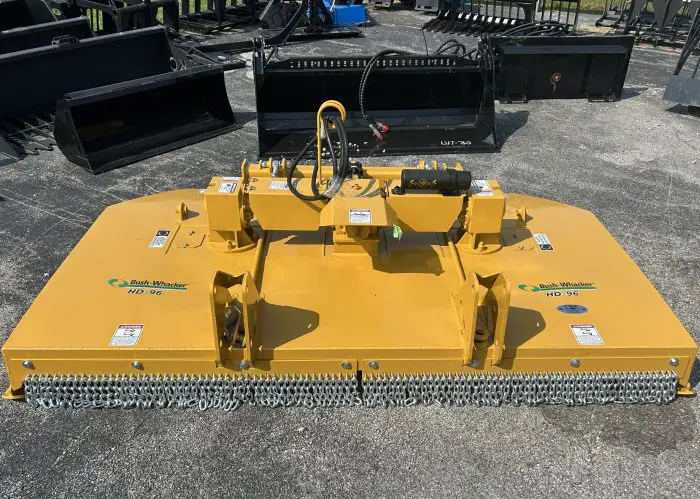

Bush-Whacker HD96-P
- Model: HD-96
- Cut Width: 96″
- Overall Width: 105″ (lift and pull)
- HP Required (Min.): 60 HP (lift); 50 HP (pull)
- Gearbox Rating – Power Divider: 160 HP
- Gearbox Rating – Center & Wing: 120 HP
- Blade Tip Speed – Center: 15,480 FPM (540 RFM)
- Cutting Capacity (Max.): 3″
- Driveline Size – Main: Cat 5
- Cross Shaft: Rubber Disc
- Tires: Groved Laminated
- Cutting Height: 2-12″
- Hitch: CAT2 or CAT3
- Tongue Weight: 900 LBS
- Total Weight: 1,920 lbs. (lift), 2,295 lbs. (pull)
- Side Band: 1/4″
- Blades: 1/2″ x 4″ updraft
- Blade Holder: Round
- Gearbox Warranty: 5 Years
- Deck: 10 gauge
- Blade Overlap: 4″
- Stump Jumper Size: 7 gauge
- Leveling Rods: 2 on pull type
- Overall Length: 91″ (Lift)
- Driveline Protection: Slip Clutch
- Chains: Single Chains
- Transport Width: 105″
