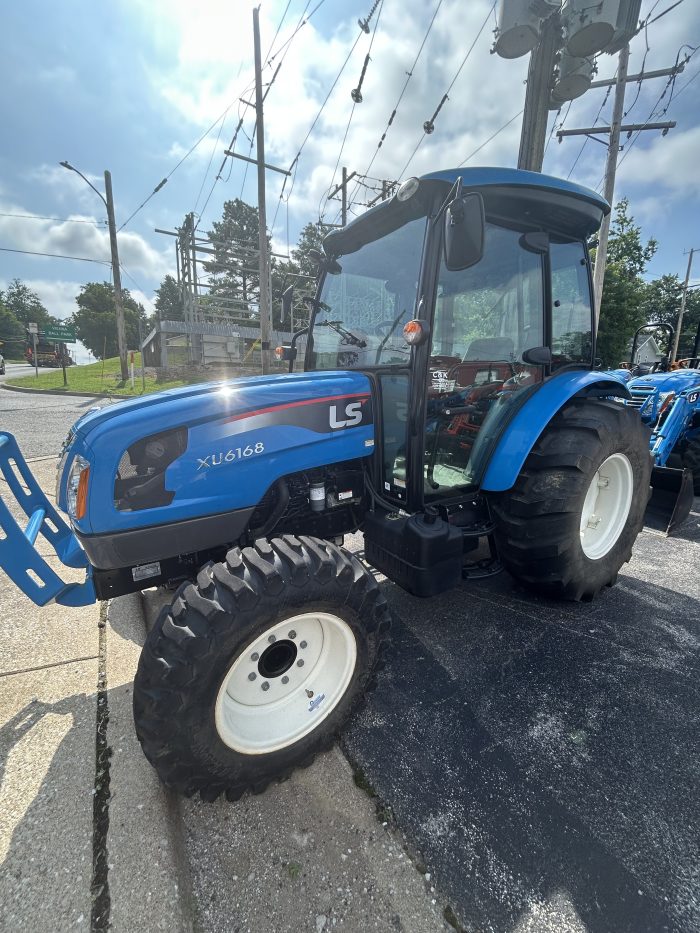

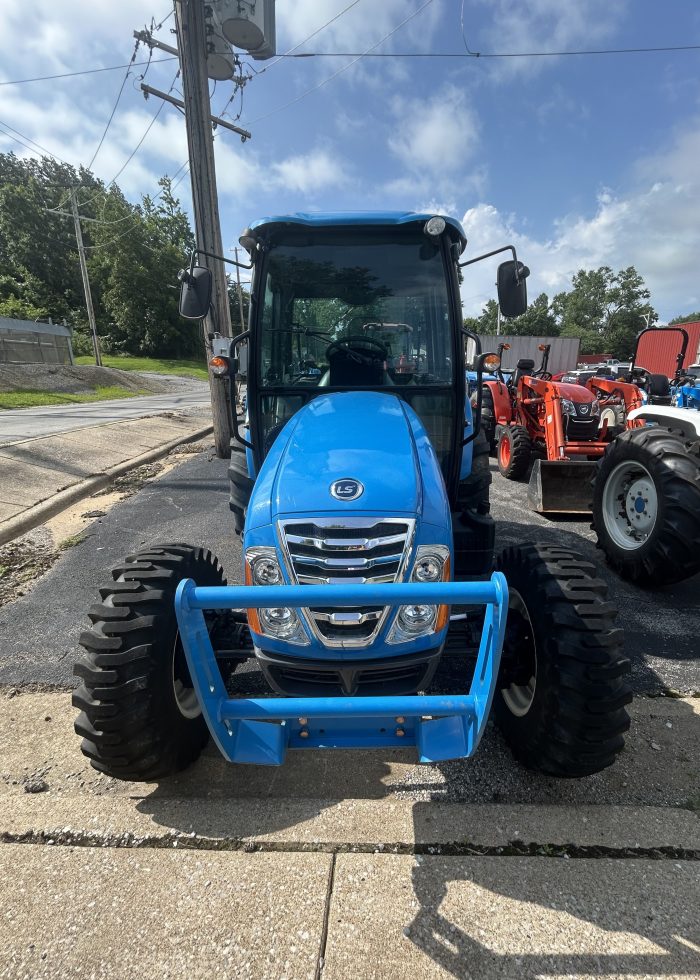

The LS XU6168 is a versatile 4WD utility tractor offering a balance of power, durability, and comfort.
| LS XU6168 Engine | |
| LS 2.5L 4-cyl diesel | |
| Fuel tank | 21.1 gal |
| Hydraulics | |
| Type | open center |
| Pump flow | 9.9 gpm |
| Total flow | 14.5 gpm |
| Steering flow | 4.6 gpm |
| Tractor hitch | |
| Rear Type | II |
| Control | position and draft control |
| Rear lift | 4079 lbs |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
Engine: LS Mtron 4‑cylinder, CRDI turbo‑diesel, 2.505 L (152.8 ci)
Gross Power: 68 hp (50.7 kW)
PTO Power: ~60 hp (44.7 kW)
Rated Speed: 2,500 RPM
Offers 16×16 synchronized shuttle or Power Shuttle transmission
4WD with power steering and wet disc brakes
ROPS standard with A/C
Hydraulic system: open center
Implement pump: ~37.5 L/min total; steering flow ~17.4 L/min

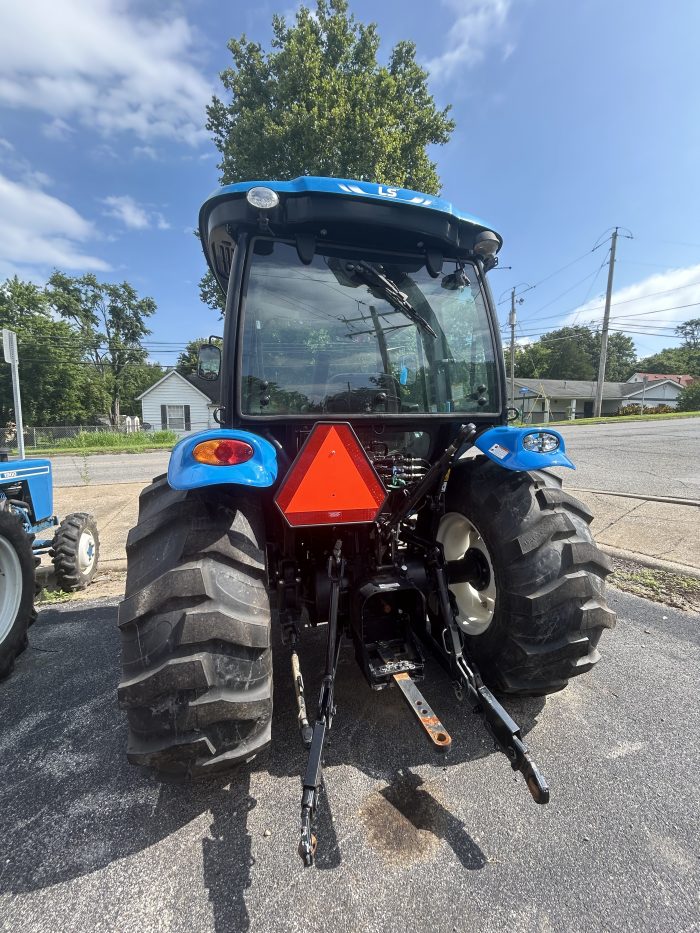

Rear 3‑point hitch: Category II
Lift capacity: 1,850 kg (4,079 lb)
PTO: independent rear PTO at 540 (plus optional 540E/1000 in some markets)
Wheelbase: 80.3″ (203 cm)
Length: ~138.6″ (352 cm)
Width: ~70″ (177 cm)
Height: ~103″ ROPS / 100.6″ cab
Weight:
ROPS version: 4,674 lb (2,120 kg)
Cab version: ~5,121 lb (2,322 kg)
Ground clearance: ~440 mm (17.3″)
Fuel tank: 80 L (21.1 gal)
Charging system: 12 V alternator (70 A)
