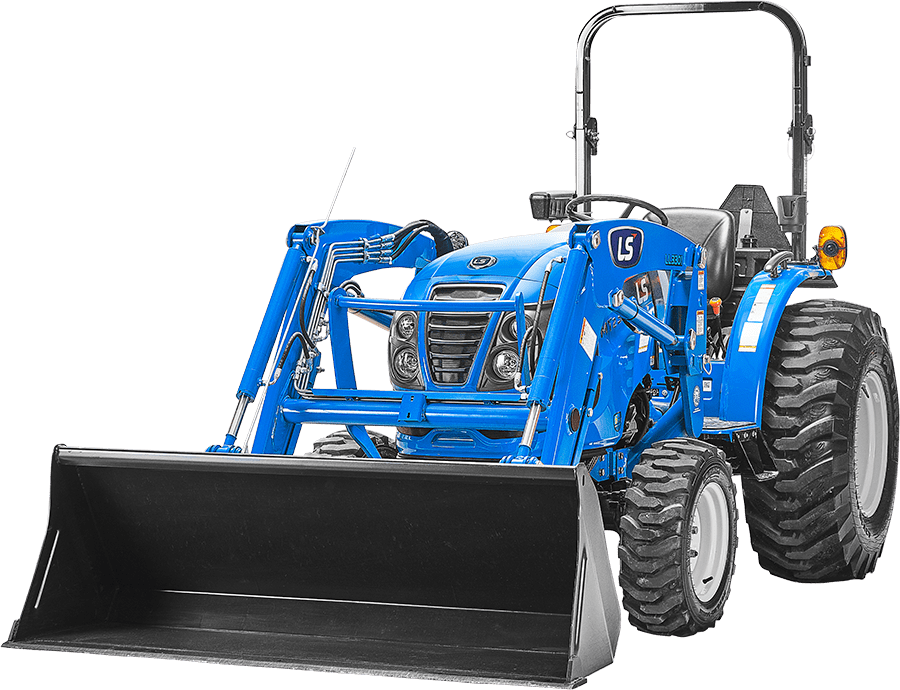

LS Tractors MT235E 1

SERIES



The MT2E Series provides customers with value and affordable horsepower.  This series not only promotes a variety of horsepower’s, but also boast numerous features and implements that can make this series a perfect fit for many applications.

dumbbell iconLOADER LIFT CAPACITY 1,688 lbs. tractor iconHITCH LIFT 1,808 lbs.
lightning iconENGINE HP 30.0 HP tractor wheel iconPTO HP 25.5 HP



Brochure LS Model Comparison Competitive Comparison Get Pre-Approved

MT230E – 30HP

*Exact model shown in 360° view may vary

Features

4WD (FRONT WHEEL MECHANICAL ASSIST)

Go from 2WD to a 4WD with a simple move of a lever.

INDEPENDENT PTO

Easiest PTO to operate that can be turned on or off with a switch.

STANDARD 12X12 SYNCHRO SHUTTLE

Makes changing direction easier than competitive non-shuttle gear models. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.

SIDE MOUNTED MAIN GEAR LEVER

Maximizes space and makes getting on and off tractor easier than straddle type like other brands.

STANDARD TILT & POWER STEERING

Makes turning easier, improves control and reduces fatigue.

STANDARD FOLDABLE ROPS

Allows Storage in low clearance buildings or sheds.

YOUR CHOICE OF TIRES AT NO ADDITIONAL COST*

Choose Ag, Industrial or Turf tires at no additional cost. *Subject to dealer inventory.

3-POINT HITCH

Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.

ERGONOMICALLY DESIGNED 3-POINT HITCH CONTROLS

Easily accessible for maximum comfort and convenience with hydraulic position control.

STANDARD DRAW BAR

Increases the usefulness of the tractor without the additional optional cost.

LARGE FUEL TANK

7.4 gallon capacity provides long operation times between fill ups.

STANDARD RUBBER MAT

Reduces noise, vibration and prevents slipping.

LS TRACTOR TIER 4 ENGINE

Generates more power with less noise, fuel consumption, vibration and emissions. Standard preheat starting aid helps starting in cold weather.

EASY OPEN ONE-PIECE STEEL HOOD

Easy access for maintenance of this low emissions, fuel efficient engine. Standard pre-heat starting aid improves starting in cold weather.

MODERN ERGONOMIC DESIGN

This compact is ergonomically designed.

ADJUSTABLE SEAT WITH SEAT BELT

Keeps you in a comfortable and safe position for maximum control.

SPECIFICATIONS

ENGINE

  • Type: 3-cylinder, indirect-injection, Water-cooled, Diesel, NA, CRDI
  • Model (Tier 4): L3C19-D3
  • Engine HP (Gross): 30
  • PTO HP: 25.5
  • Rated Speed (RPM): 2,600
  • Displacement (cu. in.): 114.7
  • Fuel Tank Capacity (gal): 7.4
  • Alternator(V-A): 12 – 70

DRIVE TRAIN

  • Transmission: Synchro shuttle
  • No. of Speeds: F12 X R12
  • Brakes: Wet, Multi-Disc
  • Steering: Hydrostatic Power Steering

PTO

  • Type: Independent
  • Rear RPM: 540 (Standard)
  • Mid RPM: 2,000 (Option)

HYDRAULIC SYSTEM

  • Control System: Position
  • Implement pump (gpm): 8.2
  • Steering pump (gpm): 4.1
  • Total flow (gpm): 12.3
  • Category, 3 pt hitch: CAT 1
  • Hitch Lift capacity (lb): 1,808
  • Remote Valves: Option

DIMENSION

  • Overall length Frame to Link (in.): 121
  • Wheelbase (in.): 69
  • Overall width with tires (in.): 54
  • Height to top of ROPS(in.): 88

TIRE SIZE

  • Ag Front/Rear: 7 – 14 / 11.2 – 24
  • IND Front / Rear 25 x 8.5 – 14 / 43 x 16 – 20
  • Turf Front / Rear 25 x 8.5 – 14 / 41 x 14 – 20

WEIGHT

  • Total weight without ballast (lbs).: 2,866

OPTIONS

Remote Valve- 1 pair (2 outlets) or 2 pair (4 outlets)
Detent Kit
Work Light
Horn
Front Weight – 44 lbs. x 4

ATTACHMENTS

FRONT END LOADER – LL3301

  • Bucket (in): 66
  • Maximum Lift height (in): 94
  • Clearance with Attachment Dump (in.) 65.6
  • Reach at Maximum Height (in): 11.5
  • Maximum Dump Angle (deg.): 57
  • Maximum Rollback Angle (deg.): 40
  • Digging Depth (in): 5.5
  • Overall Height in Carry Position (in): 53
  • Lift Capacity(@ Pivot pin) (lbs.) 1,688
  • Breakout Force(@ Pivot pin) (lbs.): 2,855
  • Approx. Weight (Loader w/o Bucket) (lbs.): 650
See Attachment

SNOWBLOWER – LW3163B

  • Cutting Width (in.): 63 (68 with extension)
  • Overall Width (in.): 68
  • Cutting Height (in.): 23
  • Impeller Drive (lbs.): Gear Box
  • Auger Drive: Worm Gear
  • Auger Diameter (in.): 13.75
  • Impeller Diameter (in.): 17.625
  • Number of Blades on propeller: 4
  • Chute Rotation: Hydraulic
  • Adjustable Heavy Skid Shoes: Yes
See Attachment

BACKHOE – LB1105

  • Digging Depth (in): 76.3
  • Reach From centerline of swing Pivot (in): 113.1
  • Loading Height (in): 63.6
  • Swing Arc (deg.): 180
  • Transport Height (in): 77.2
  • Bucket Rotation (deg.) :180
  • Stabilizer Spread (Down Position) (in): 68.7
  • Stabilizer Spread (Up Position) (in): 46.4
  • Bucket Digging force (lbs.): 2,817
See Attachment
